How to Integrate Quality Control with Transfers

The integration of Quality and Inventory apps helps you to create quality control points in-stock operations such as the receipt, delivery, and transfer of goods in purchasing, selling, and rotation activities or during storage time.

Requirements

This tutorial requires the installation of the following applications/modules:

To use this feature, go to Apps, remove Apps filter, search and install Stock Quality Control module:

Install the application in Viindoo.

Create quality control points for inventory operations

Navigate to Quality ‣ Quality Control ‣ Control Points and click on New to provide criteria for the control.

Types of warehouse operations in Quality app.

You can define product quality control points depending on the needs of stock operations in the following fields:

  • Title: Name the quality control point.

  • Quality Type: Choose Product.

  • Product: Select the product that needs to be checked.

  • Stock Operation Type:

    • Receipts: Used for product quality control activities when goods are received from vendors.

    • Delivery: Used for product quality control activities before goods are delivered to customers.

    • Internal Transfer: Used for product quality control activities when goods are transferred between locations in your company. This option only shows when you activate Storage Locations.

  • No Proceed If Failed: If you check this box, the goods will be blocked when they fail the quality control point.

  • Control Type:

    • All Operations: 100% of the products at the selected stock operation must be quality checked.

    • Randomly: Quality checks randomly according to the percentage of goods. The goods will pass this quality control point if they meet the specified control frequency.

    • Periodically: Can be used for inventory control activities to ensure the quality of goods with a long inventory age.

  • Type:

    • Pass - Fail: The quality experts evaluate the goods as pass or fail.

    • Measure: Used for measurable criteria such as size, length, width, volume…allowing a certain tolerance ratio.

  • Qty to Check: The quantity of goods to be inspected for quality control (measured as a percentage).

  • Team: The quality control team.

  • Responsible: The user in charge of the quality control point.

After completion, the system will automatically save the information, or you can also choose to save manually.

The practical example

Your company buys 10 desks with measurements of 120mm, before stocking, they must be quality and size checked properly.

Following these steps below:

Step 1: Create the quality control point. In that quality control point, you need to note the following fields:

  • Stock Operation Type: Receipts;

  • Type: Measure;

  • Norm: 120 mm;

  • Tolerance: 118 - 120 mm.

Based on this control point, you can allow the product to be stocked or not.

Create quality control points

Step 2: Create a purchase order, check the quality and stock the desks.

After creating and confirming the Purchase Order, click on Receive Products.

Receive goods on purchase orders.

The system will move to the warehouse receipt order interface. This receipt order will be in Ready state. You click on Quality Checks to control input quality before acceptance.

Check the quality of imported goods.

The quality check view will be displayed, you manually enter the product’s measurement in Measure field in millimeters. Here are two situations that may occur:

  • Situation 1: The measurement is out of the allowable tolerance range.

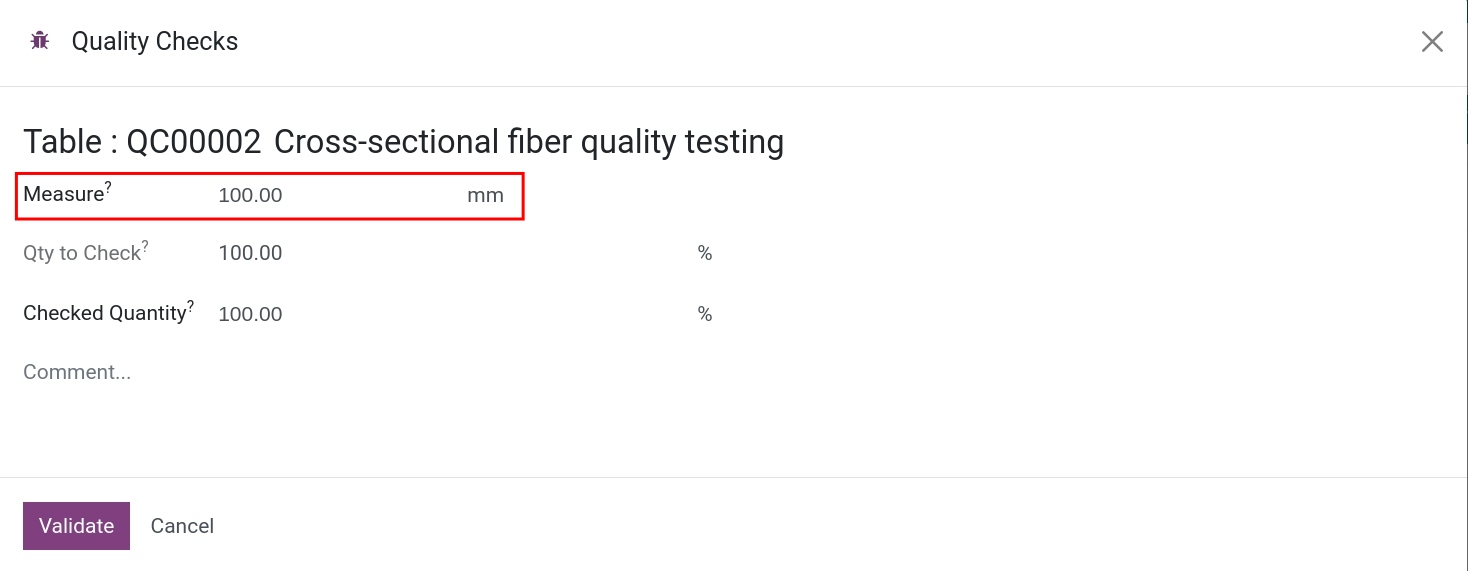

    Measurements are out of the tolerance range.
By clicking on Validate, the system will display a warning panel Quality Check Failed, you can choose Correct Measure to update new data or click Confirm Measure to mark a failure for the quality check in here.

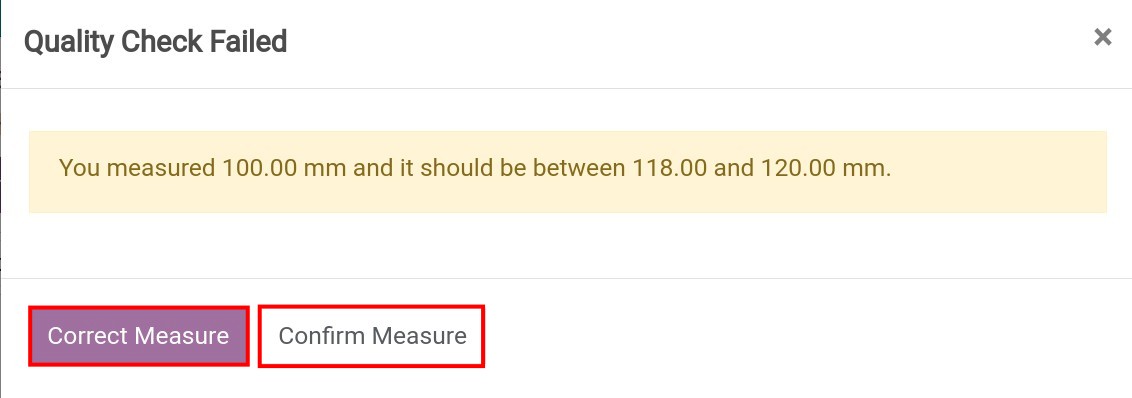

Quality Check Failed.
In this case, you need to create the quality alert.
  • Situation 2: The measurement is in the allowable tolerance range.

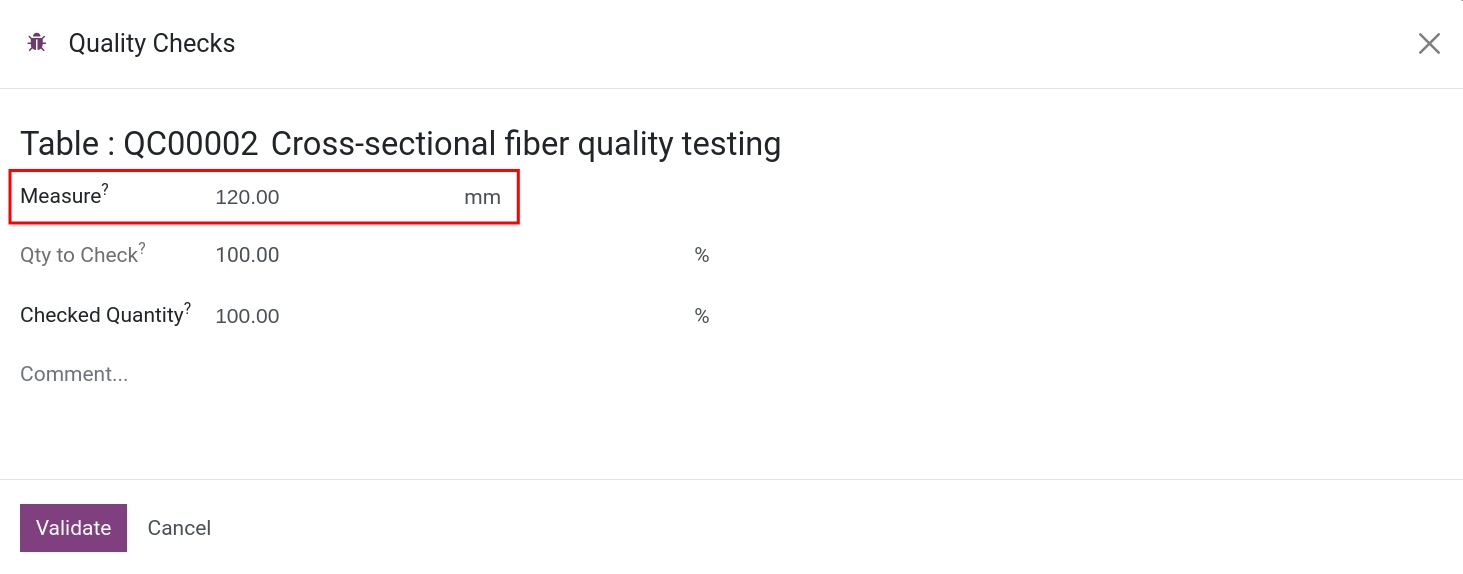

    Measurements are in the tolerance range.
The procedure is similar to the situation above, and confirming the warehouse receipt concludes the warehouse receipt process.

For the position of the quality control officer, you can review the status of inspection forms by accessing Quality ‣ Quality Control ‣ Quality Checks. A list of inspection forms will be displayed.

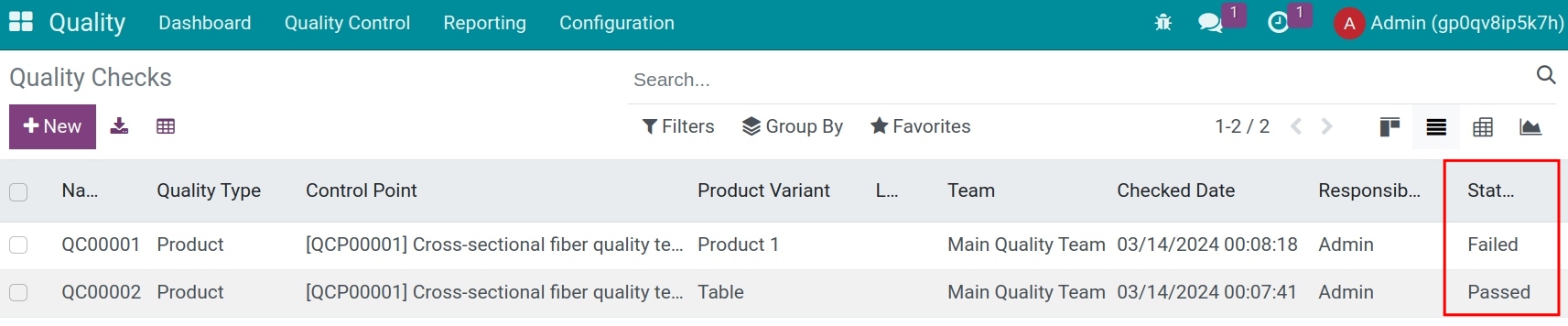

Quality checks results.
