IoT Work Order Tablet
by Viindoo
| Lines of Code | 940 |
| Technical name | viin_iot_mrp_workorder |
| License | OPL-1 |
| Website | https://viindoo.com/apps/modules/17.0/viin_iot_mrp_workorder |
| Required Apps | Manufacturing (mrp) Invoicing (account) Discuss (mail) Employees (hr) Inventory (stock) |
| Included Dependencies | Advanced MRP Accounting Stock Barcode Mrp Workorder Viindoo Manufacturing Viin Map View MRP Barcode Viindoo Base Viin Warehouse Web Gantt Internet Of Things IoT Manufacturing Viin Cohort View |
The Scanner Already on the Bench Now Runs the Tablet Screen
IoT Work Order Tablet lets a scan on any of the work center's own barcode scanners do exactly what tapping the tablet would have done - the same lot binding, the same quantity check, the same printed-command buttons.
No putting the part down to reach the screen, and no IoT permission needed to use it.
Extends viin_iot_mrp -
see its documentation.
Extends viin_iot -
see its documentation.
Key Features
IoT Barcode Scanner on the Tablet Work Order
A scan on any barcode scanner wired to the work center's own IoT box does exactly what a scan on a scanner plugged straight into the tablet would - the same lot binding, the same quantity check, the same command buttons. A status chip always shows whether the scanner is listening, taken over by another screen, or unreachable.
Print Finished-Unit Label from the Tablet
One tap on the tablet - or one scan of the same command barcode already used for Start, Pause, and Done - prints the finished unit's label on the station's own nominated printer, without putting the scanner down.
How It Works
An administrator connects the work center's IoT barcode scanner - and, where the station has one, its label printer. This is the one setup step, and the only part of this that needs an IoT permission.
Any ordinary Manufacturing user - holding no IoT permission at all - opens the tablet work order at that station, the same way they always have.
A scan on the station's scanner reaches the tablet exactly as a scan plugged into the tablet would: a lot or serial label binds the batch, a GS1 label fills the quantity, a printed command barcode presses the button it names.
The status chip shows whether the scanner is listening, displaced by another open tablet, or unreachable. A barcode the order can't accept - wrong unit, wrong state - gets the same refusal a tap on the tablet would have gotten, never silence.
Once a printer is nominated for the station, the operator prints the finished unit's label from the same tablet - or the same command sheet - without ever putting the scanner down.
The Scanner Becomes the Tablet's Buttons and Keyboard
A scan on any barcode scanner wired to the station's own IoT box lands on the tablet work order exactly as if it had come from a scanner plugged straight into the tablet: a lot or serial label binds the finished lot, a GS1 weight label records the quantity in the order's own unit or is refused outright, and a printed command barcode presses the Start/Pause/Done button it names instead of being recorded as data. A station can carry several scanners, and a scan means the same thing whichever one produced it - there is nothing to configure per scanner. Reading this screen needs no IoT permission at all: any Manufacturing user who can open the tablet can scan.
Print the Finished Unit's Label Without Putting the Scanner Down
One tap on the tablet - or one scan of the same printed command sheet already in use for Start, Pause, and Done - prints the finished unit's label on the station's own nominated printer. The button only appears once a printer has been nominated for that station, so there is nothing to press that would not actually print.
Need help with IoT Work Order Tablet?
Pre-Sales & Partnership
Talk to Viindoo before you buy.
viindoo.com/apps/modules/17.0/viin_iot_mrp_workorderTechnical Requirement
- Odoo version: 17.0
- Editions: Community, Enterprise
-
Required apps: IoT Manufacturing (
viin_iot_mrp), Work Order Tablet (to_mrp_workorder), MRP Barcode (to_mrp_barcode) - License: OPL-1
Give the Scanner Already on the Bench the Tablet Screen It Could Never Reach Before
Talk to Us About Adding IoT Scanning to Your Work Orders See a Scan Drive the Tablet ScreenIoT Work Order Tablet
Note
Extends viin_iot - see its documentation.
Note
Extends viin_iot_mrp - see its documentation.
An operator running a work order on the tablet screen has both hands on the product, so typing a lot number or tapping Start, Pause, or Done means putting the part down first. This module lets the barcode scanner already wired to that work center's own IoT box do the same job: a scan on that scanner is handled exactly as a scan on a scanner plugged straight into the tablet. A work center with no IoT scanner attached, and a database without this module installed, behave exactly as they do today.
This is a small bridge with exactly two capabilities:
- A scan on the work center's own IoT barcode scanner drives the tablet work order - the same lot binding, the same quantity check, the same printed command buttons a tablet-attached scanner would trigger.
- A Print Label button on the tablet sends the finished unit's label straight to the work center's own nominated printer, reachable by touch or by a printed command barcode.
Note
This guide documents what was actually reachable and visible on a live instance with no physical IoT box or scanner connected. Every screen shown below was captured on that instance; where a behavior needed real hardware to demonstrate, it is described from this module's own code and translations instead, and said so explicitly.
Installation
This module installs itself automatically as soon as its three required apps - Internet Of Things, IoT Manufacturing, and Work Order Tablet - are already installed, so most databases never need to install it by hand.
If it is not installed automatically, or you removed it and want it back:
- Open Apps.
- Remove the default Apps filter so non-application modules are also listed, then search for IoT Work Order Tablet.
- Click Install.
If you do not want it, open Settings ‣ IoT ‣ IoT Integrations and clear the IoT Work Order Tablet checkbox.
Configuration

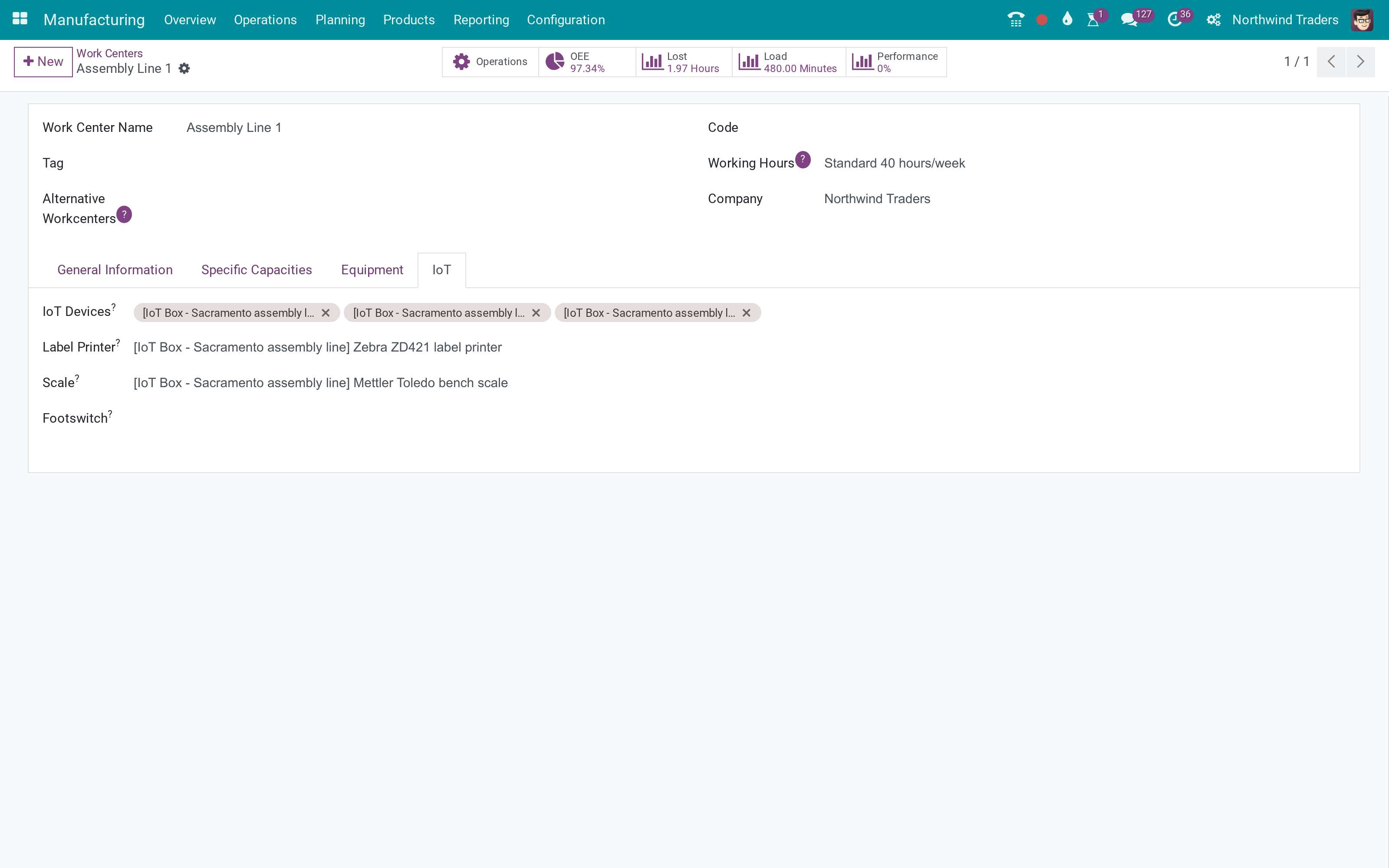

Attach a scanner to a work center

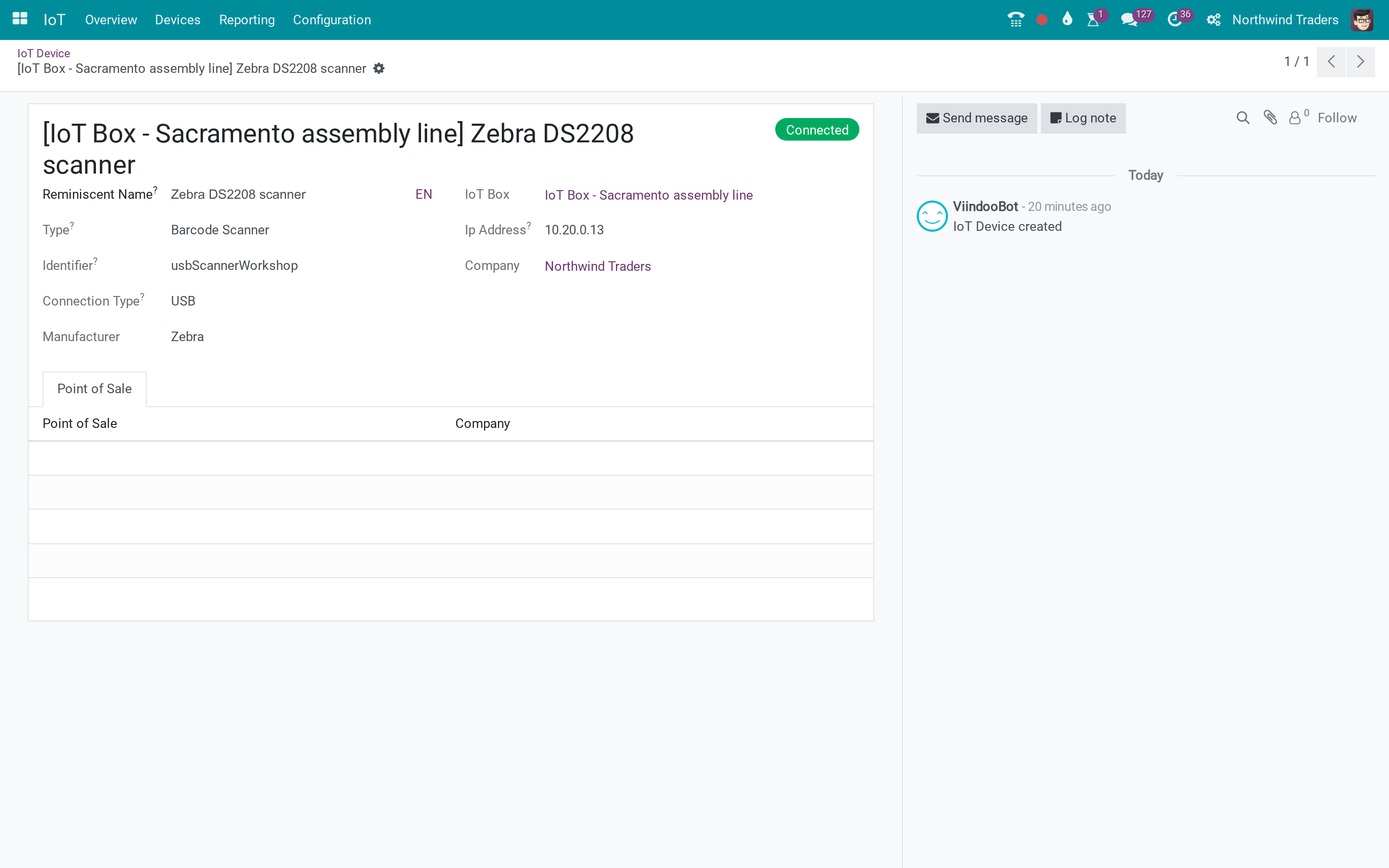

There is nothing to configure inside this module itself. A barcode scanner starts driving the tablet screen the moment it is a registered IoT device of the Scanner type and is attached to a work center's own IoT Devices list - open Manufacturing ‣ Configuration ‣ Work Centers, open a work center, go to its IoT page, and add the scanner there. A work center can carry several scanners at once; every one of them is listened to, and a scan means the same thing whichever scanner produced it, so there is no per-scanner role to nominate.
Registering a new device and choosing its type is done in the Internet Of Things app itself, not here - see that app's own documentation for pairing a box and registering a device. This was not re-verified in this run and is not repeated here to avoid documenting a screen this module does not own.
The finished unit's label prints on whichever device is nominated as the work center's Label Printer - the same field, and the same nomination step, that IoT Manufacturing documents for its own Print Label button. Nominating a printer is what makes this module's own Print Label button appear on the tablet screen.
Who can attach a scanner or a printer
Attaching hardware to a work center is a configuration action, so the work center's IoT page only appears to a user whose account holds at least the IoT app's User access level, set on the Access Rights page of that user under Settings ‣ Users & Companies ‣ Users.
The operator who scans or prints needs none of this. Reading the tablet screen and pressing its buttons only needs the ability to open the work order itself - no Internet of Things (IoT) access level at all. This is by design: once an administrator has attached the hardware, any ordinary Manufacturing user can use it.
Usage

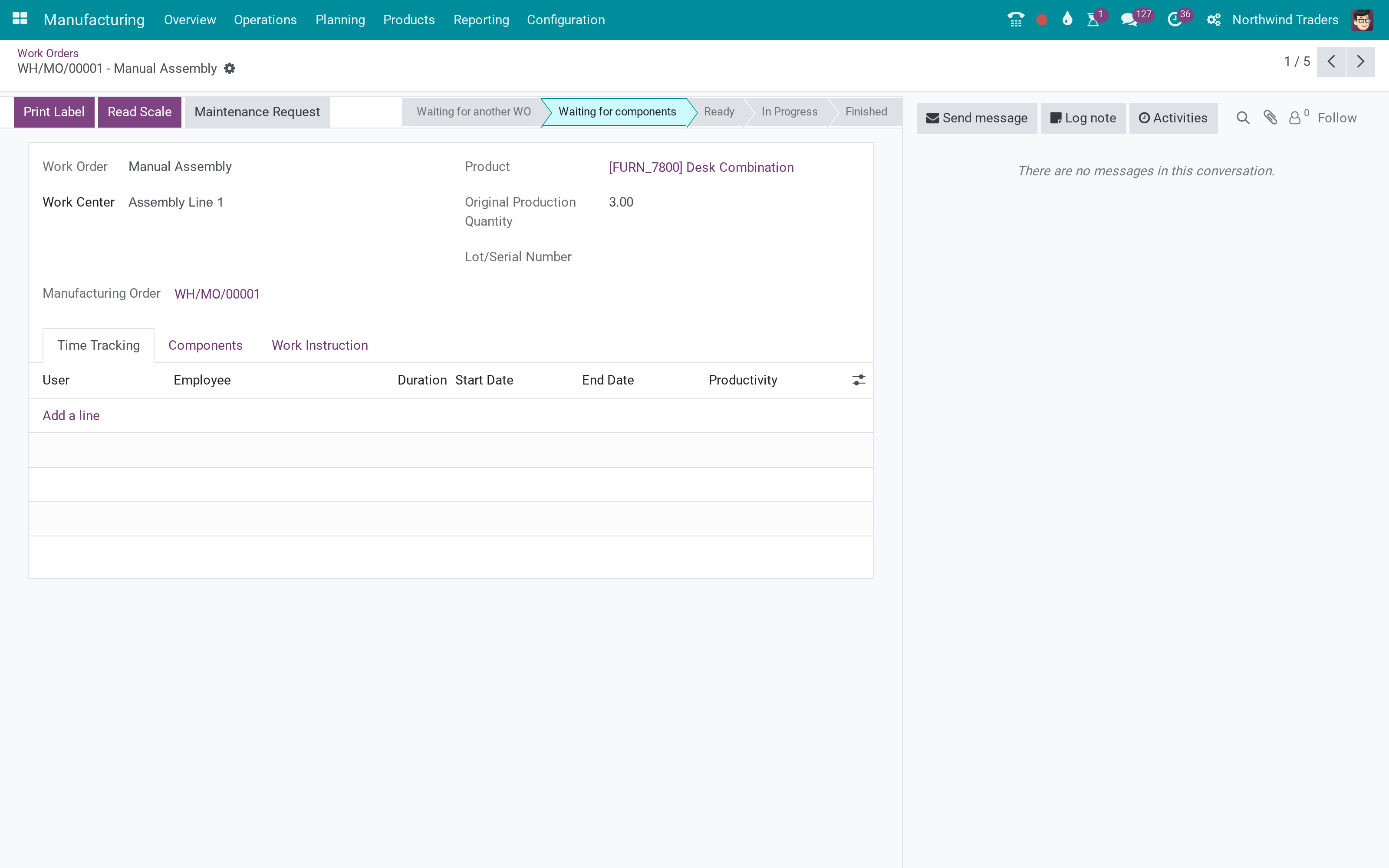

Scan to drive the tablet work order

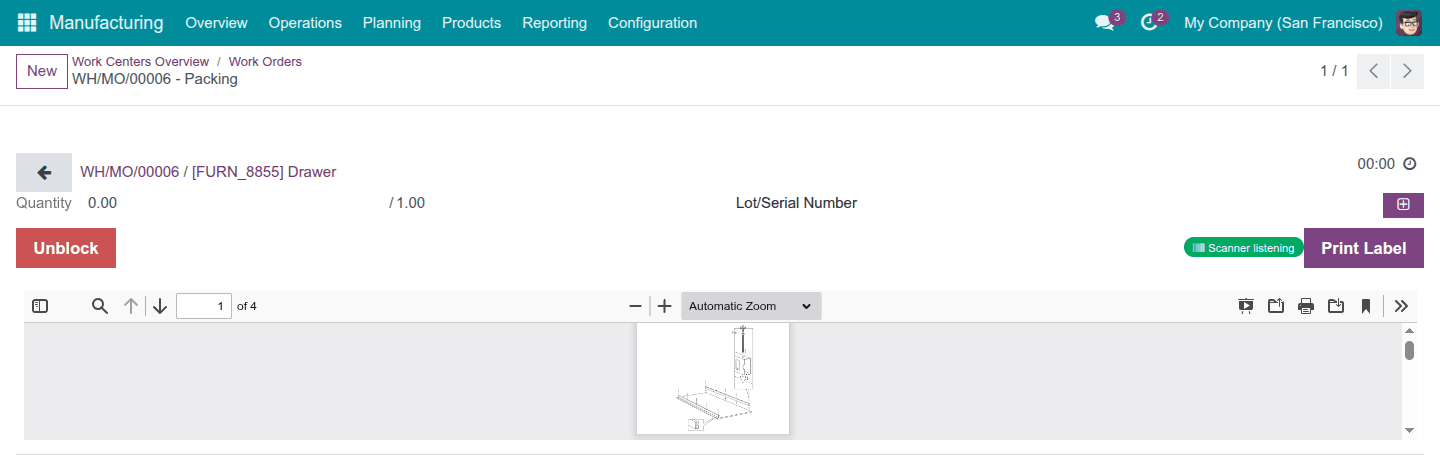

Open Manufacturing ‣ Planning ‣ Planning by Workcenter (or Planning by Production), open a work order at a work center carrying an attached scanner, and click Open to reach its tablet screen. A small chip appears on the actions row and reports what the station's scanner is doing:
- Scanner listening - a scanner is claimed and ready. A lot or serial label scanned now binds the finished lot exactly as it would from a scanner plugged into the tablet; a GS1 weight label fills the produced quantity in the order's own unit, or is refused outright if it does not match; and a printed command barcode - the same sheet used for Start, Pause, and Done - presses the button it names instead of being recorded as a value.
- Scanner unreachable - the station's IoT box did not answer. This is the state a station shows when no physical scanner is actually connected, as on the instance this guide was written against: the chip says so plainly rather than pretending the scanner is still listening.
- Scanner in use by another screen - another open tablet already holds this station's scanner. Closing that other screen returns it here. (This state is documented from the module's own design and translations; it needs a second screen open on the same station to reproduce, and was not reproduced live in this run.)
Not every scan changes something on screen, and that is expected rather than a fault. A read too short to be a real barcode is dropped silently, the same as it would be from any other scanner. A data barcode the work order cannot accept right now - the wrong unit, or the wrong state - is refused with the same message a tap on the tablet screen would have produced, never in silence. A printed command barcode presses the button it names and is never recorded as data; if the screen currently on display carries no button with that name, nothing happens at all. A scan that visibly does nothing is a real, working outcome of this design - not a sign the scanner failed.
Print the finished unit's label
Once a printer is nominated for the station, a Print Label button appears on the same actions row. Click it - or scan the same printed command barcode already used for Start, Pause, and Done - to send the finished unit's label straight to that printer, without putting the scanner down. The button itself, and what happens after it is pressed, belongs to IoT Manufacturing; see that module's own documentation for how the print is confirmed and what its label looks like.
Troubleshooting
- The scanner status chip never appears at all. The work center has no scanner attached, or none is registered as a Scanner-type device yet. Attach one under Manufacturing ‣ Configuration ‣ Work Centers, on that work center's IoT page.
- The chip reads Scanner unreachable. The station's IoT box could not be reached - check that the box is powered on and reachable on the network. A tablet opened with no physical box at all, as in this guide's own screenshots, always ends up in this state.
- The chip reads Scanner in use by another screen. Someone else already has this work order's tablet screen open elsewhere. Close that other screen to release the scanner back to this one.
- A scan visibly does nothing. This can be entirely normal - see the note at the end of "Scan to drive the tablet work order" above. If a data barcode should have been accepted and was not, check that its unit and the work order's current state actually match what the label claims.
- The Print Label button does not appear. No printer is nominated on this work center yet. Nominate one on the work center's IoT page, next to where the scanner is attached.
FAQ
- Does the operator scanning or printing need any IoT permission? No. Once an administrator has attached the hardware, any Manufacturing user who can open the tablet work order can scan and print - no Internet of Things (IoT) access level is required.
- Can a work center have more than one scanner? Yes. Every scanner attached to the station is listened to at once, and a scan means the same thing whichever one produced it.
- What happens on a work center with no IoT scanner attached? Nothing changes. The tablet screen looks exactly as it does today, with no chip and no Print Label button.
- Does this module work without a physical IoT box connected? The tablet screen still opens and works normally by touch; only the scanner chip and the barcode path need a real, reachable box. This guide's own screenshots were captured without one, which is exactly what Scanner unreachable looks like.
